Hino Power Take-Off (PTO)

Kozmaksan Hino Power Take OFFs designed for Hino series main transmissions. Kozmaksan Hino PTOs have Single output model, Side Mounting type option and available for UNI & ISO mounting housing or suitable for flange connections.

  • Kozmaksan Product Code          : HN.09.M009
  • Suitable Main Transmission        : M009
  • Used Trucks                                : HINO FG1J/GD1J/GD1JEUD-BAX/GD1JLUA-BAX/FG1JMUB-BGX/FG1JPUB-BGX/GH1JGUD-NGX/GH1JMUA-NGX 51021 / 51017 / 51022 / 51322 / FT1JEUA-CGX / FT1JGUA-CGX / FC4JJUA-NNL / FT1JEUA-HGL / GT1JFUA / GT1JHUA HINO FC9J FC4JJRA JERA JLRA / FG8J
Share:

Hino Power Take-Off (PTO)

  • Mounting Type: Left Side PTO
  • Control Type: Pneumatic
  • Weight: 13 kg
  • Sense of Rotation:
  • 1 Year Warranty
  • 10 Years Spare Parts Warranty

Options

  • UNI & ISO & Flange Mountings
  • Engage/Disengage Sensor
  • Control Cabel and Lever with Mechanic PTOs

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque (ISO / Flange) 40 KGM 7 392 Nm / 289 LBS-FT
Max. Power (ISO / Flange) 42 kW / 56 HP
Max. Torque (UNI) 23 KGM / 166 LBS-FT
Max. Power (UNI) 24 kW / 32 HP
Available Internal Ratios 1/0.64
Max. Speed 2000 RPM

Catalogue of HN.09.M009

Download

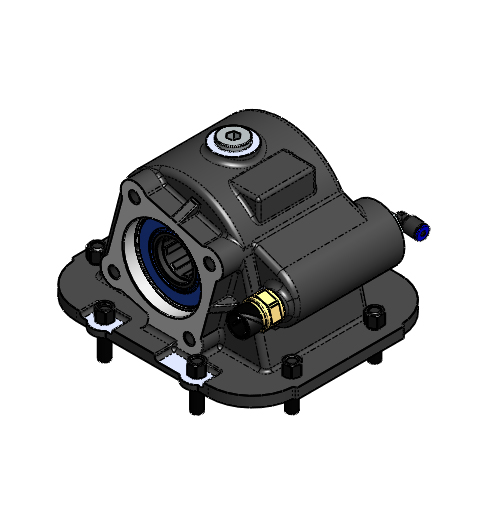

ISO Output

ISO Output

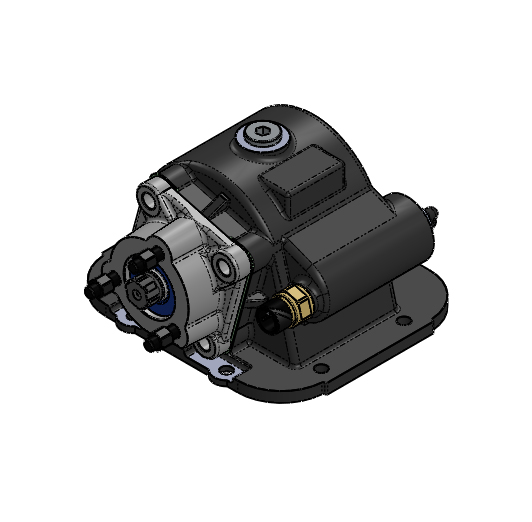

UNI Output

UNI Output

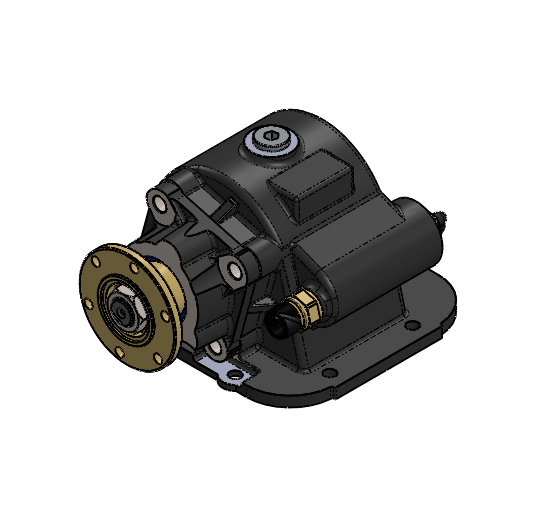

Flange Output

Flange Output
