Power Take-Off IVC.03.2840
Iveco Power Take-Off (PTO)
Kozmaksan Iveco Power Take OFFs designed for Iveco series main transmissions. Kozmaksan IVC PTOs has Single&Double output models, Rear&Side Mounting type options and available for UNI&ISO mounting housing or suitable for flange connections.
Iveco Power Take-Off (PTO)
- Mounting Type: Left Side PTO
- Control Type: Mechanic&Vacuum
- Weight: 13 kg / 28,5 lb
- Sense of Rotation: Opposite of Engine Shaft
- 1 Year Warranty
- 10 Years Spare Parts Warranty
Options
- UNI & ISO & Flange Mountings
- Engage/Disengage Sensor
- Control Cabel and Lever with Mechanic PTOs
Applications
- Garbage Truck
- Crane Truck
- Dump Truck
Max. Torque | 23 KGM / 225 Nm / 166 LBS-FT |
Max. Power | 24 kW / 32 HP |
Available Internal Ratios | 1/1.24 |
Max. Speed | 2000 RPM |
Catalogue of IVC.03.2840

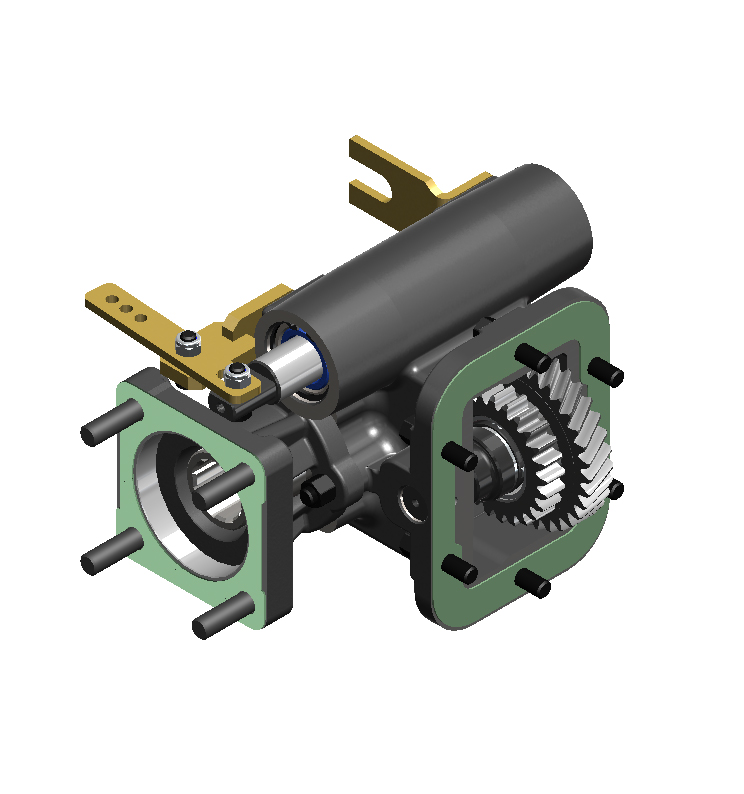

ISO Output
![ISO Output](/images/Options/c55a19bc-24af-4512-9e93-cdd26d1880a6.jpg)

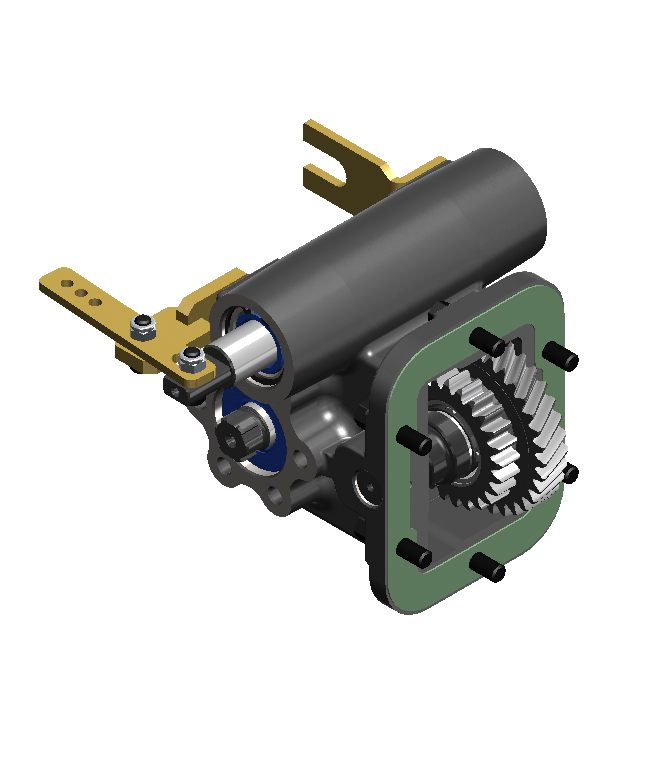

UNI Output
![UNI Output](/images/Options/ac1f15c8-743d-42a8-8315-ebc66246c248.jpg)

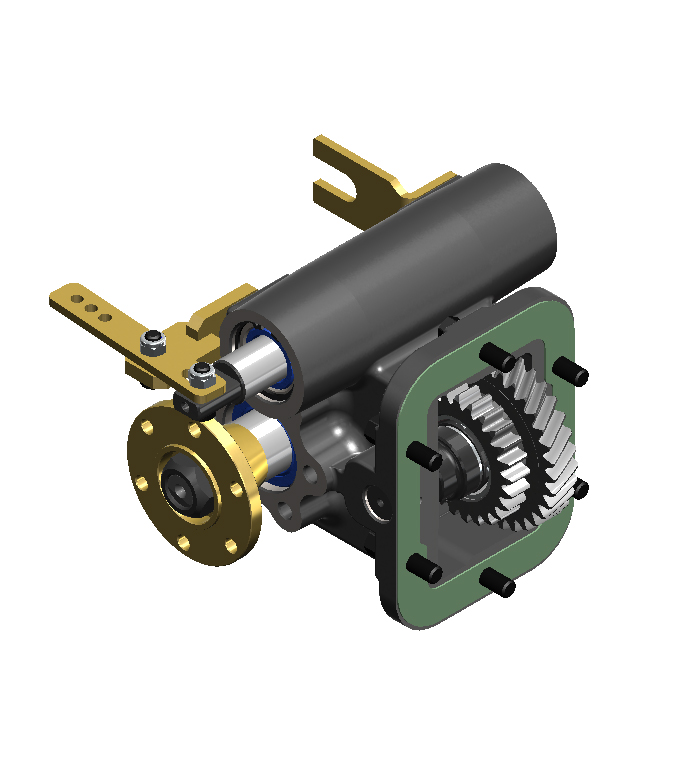

Flange Output
![Flange Output](/images/Options/abd5057b-d3d5-47c2-a3b9-acfe8e7c7d62.jpg)
