Power Take-Off MB.9.240

Power Take-Off MB.9.240

Mercedes Power Take-Off (PTO)

Kozmaksan Mercedes Power Take OFFs designed for Mercedes AXOR - ACTROSS trucks on G series and DETROIT DT.12 main transmissions. Kozmaksan Mercedes PTOs has Single&Double output models, Rear Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections.

  • Kozmaksan Product Code: MB.9.240
  • Suitable Main Transmission: G 210,211,G 240,260 - 16 / (17,03-11,7) EPS ( Daimler Chrysler AG ) / G 131 - 9 / 16,02 EPS ( IdNr: 715570 Code: NC5 ) / G 141-9 G 231-241 - G 281 - G 330-12 (11,63)
  • Used Trucks
    3939-4140-3240-4160 AXOR MERCEDES-BENZ / ZETROS MERCEDES-BENZ / 1842 AROCS

Mercedes Power Take-Off (PTO)

  • Mounting Type: Rear PTO
  • Control Type: Pneumatic
  • Weight: 12,5 kg / 27,5 lb
  • Sense of Rotation: Same as Engine Shaft
  • Aluminum Body
  • 1 Year Warranty
  • 10 Years Spare Parts Warranty

Options

  • Engage/Disengage Sensor

Applications

  • Garbage Truck
  • Crane Truck
  • Dump Truck
Max. Torque 40 KGM / 392 Nm / 289 LBS-FT
Max. Power 42 kW / 56 HP
Available Internal Ratios 1/1.03
Max. Speed 3000 RPM

Catalogue of MB.9.240

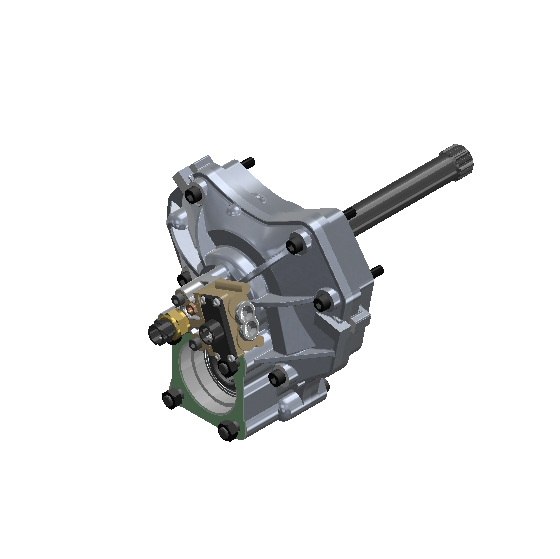

ISO Output

ISO Output

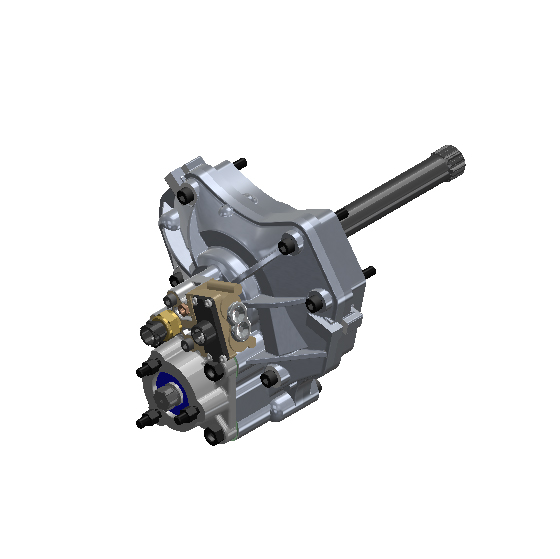

UNI Output

UNI Output

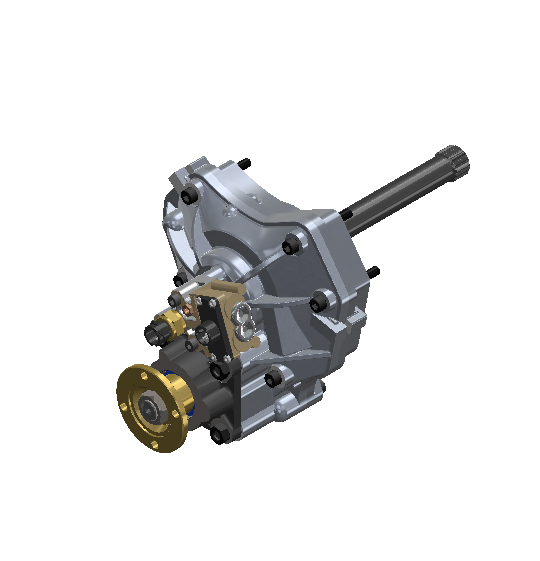

Flange Output

Flange Output
