Power Take-Off MTS.01.35S5
Mitsubishi Power Take-Off (PTO)
Kozmaksan Mitsubishi Power Take OFFs designed for MITSUBISHI trucks. Kozmaksan Mitsubishi PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections. Depending on PTO output type, torque capacity reaches up to 30 KGM.
Mitsubishi Power Take-Off (PTO)
- Mounting Type: Left Side PTO
- Control Type: Mechanic&Pneumatic&Vacuum
- Weight: 9 kg / 20 lb
- Sense of Rotation: Opposite of Engine Shaft
- 1 Year Warranty
- 10 Years Spare Parts Back Up
Options
- UNI & ISO & Flange Mountings
- Engage/Disengage Sensor
- Control Cabel and Lever with Mechanic PTOs
Applications
- Garbage Truck
- Crane Truck
- Dump Truck
Max. Torque | 30 KGM / 294 Nm / 216 LBS-FT |
Max. Power | 31 kW / 41 HP |
Available Internal Ratios | - |
Max. Speed | 2000 RPM |
Catalogue of MTS.01.35S5

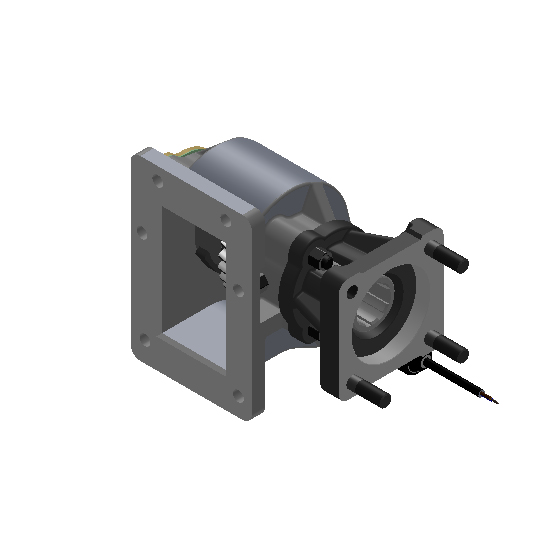

ISO Output
![ISO Output](/images/Options/e77c1d7d-e378-4db1-bd3e-c61e88c841a1.jpg)

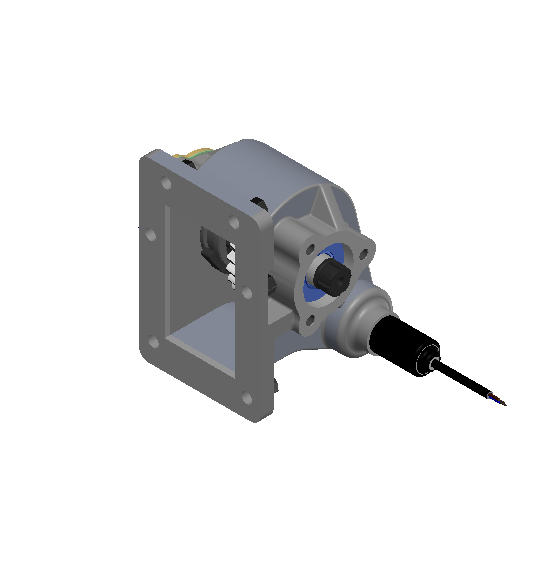

UNI Output
![UNI Output](/images/Options/d472a014-61d3-4068-afa9-58829095ad88.jpg)

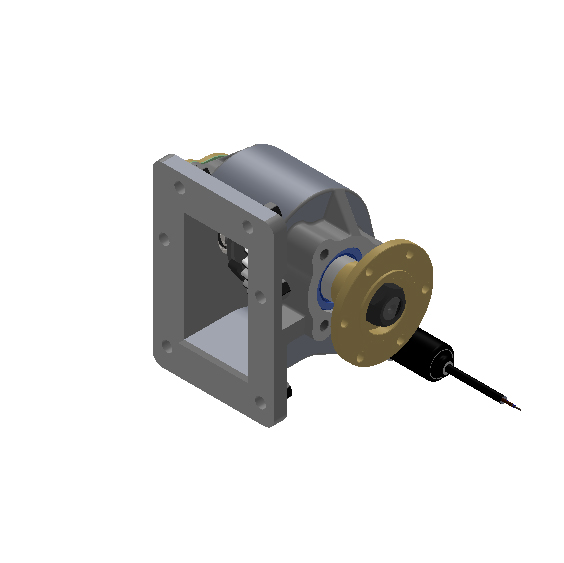

Flange Output
![Flange Output](/images/Options/2947f100-8192-446b-bcb5-fd35b74fde8f.jpg)
