Power Take-Off HYD.03.120
Hyundai Power Take-Off (PTO)
Kozmaksan Hyundai Power Take OFFs designed for Hyundai series main transmissions. Kozmaksan HYD PTOs has Single output model, Side Mounting type option and available for UNI&ISO mounting housing or suitable for flange connections.
Hyundai Power Take-Off (PTO)
- Mounting Type: Left Side PTO
- Control Type: Pneumatic&Mechanic
- Weight: 13 kg / 33 lb
- Sense of Rotation: Opposite of Engine Shaft
- 1 Year Warranty
- 10 Years Spare Parts Warranty
Options
- UNI & ISO & Flange Mountings
- Engage/Disengage Sensor
- Control Cabel and Lever with Mechanic PTOs
Applications
- Garbage Truck
- Crane Truck
- Dump Truck
Max. Torque | 23 KGM / 225 Nm / 166 LBS-FT |
Max. Power | 24 kW / 32 HP |
Available Internal Ratios | 1/1.17 |
Max. Speed | 2000 RPM |
Catalogue of HYD.03.120

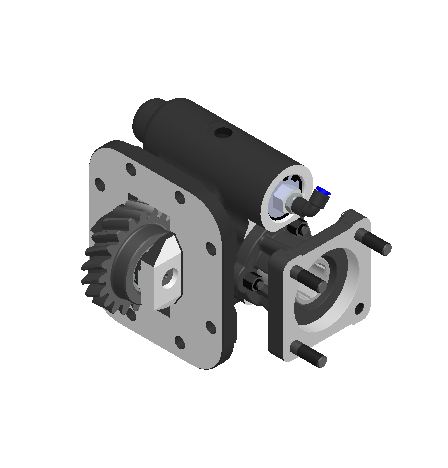

ISO Output
![ISO Output](/images/Options/bcfc8444-1deb-48f0-bb69-a073d8801e83.jpg)

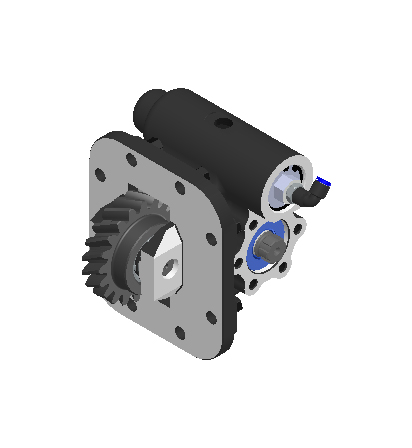

UNI Output
![UNI Output](/images/Options/2c7d11b6-44d7-4114-ae91-67e5ebfecacf.jpg)

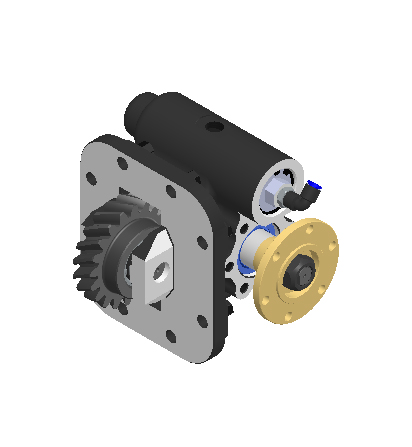

Flange Output
![Flange Output](/images/Options/0609f69d-9037-48c3-9705-2d7e8b59d020.jpg)
